Backyard Layout: 7 Steps to Plan Zones, Paths and Sizes

A bad backyard layout shows up on the first nice evening: the grill is 40 ft from the kitchen, the path to the patio crosses the soggiest part of the lawn, and the only shade falls where nobody can sit. None of that is a materials problem, and all of it is cheap to fix on paper.

Here’s how to design a backyard layout the way we do before anyone digs: seven steps with the numbers that make each one work, then layout ideas for common lot shapes and for yards with a hot tub or pool.

Step 1: List how you’ll use the yard

Start with verbs, not features: cook, eat, lounge, play, grow, store, soak. Then put numbers on them. How many people eat outside on a normal night, and at your biggest gathering? Where do the mower, bikes and trash cans live?

Split the list into must-haves and nice-to-haves. Must-haves get the best spots; nice-to-haves become later phases instead of a wish list nobody can afford to build at once.

Step 2: Map what’s already there

Work on a scaled base map of the lot; our guide to landscape plan drawing shows how to measure and draw one. Then mark:

• Sun and shade in the morning, at midday and late afternoon. A patio on the north side of the house sits in shade much of the day; a west-facing one bakes at dinnertime.
• Water: where it runs, where it puddles and where each downspout empties.
• Doors and views: the back door you use most is the hub; note what to frame and which neighbors’ windows look in.
• Utilities: meters, the AC unit, septic or propane tanks and any lines you know about. Call 811 a few business days before digging.
• Rules: setbacks, easements and HOA limits decide where sheds, pools, fences and walls can go.
• Access: the narrowest gap into the backyard decides what equipment fits, and that shows up in every price you get.

Step 3: Group uses into zones

A zone is a use plus its furniture and elbow room: cook and dine, lounge or fire, play, garden, utility. Place each one by how it relates to the house and to the others:

• Cook and dine side by side, a few steps from the kitchen door. Every trip for plates covers that distance.
• Fire and lounge can sit farther out, and a fire pit makes a good destination at the end of a path. The International Fire Code, which many towns adopt, keeps wood-burning recreational fires 25 ft from structures and combustible material (15 ft for portable outdoor fireplaces), so check your local rule before you draw the circle. Where a small yard doesn’t have 25 ft to give, a gas fire feature installed to its maker’s clearances is often the workable option.
• Play in view of the kitchen window.
• Garden in full sun (6 to 8 hours for most vegetables), near a hose bib.
• Utility (shed, bins, compost) out of the main view but on a hard path to the driveway, because trash cans travel every week.

Step 4: Plan the paths before the patios

Draw paths from each door and gate to each zone, following the routes people already take. A worn line across the lawn is a path telling you where it wants to go.

• 3 ft minimum for secondary paths and garden walks.
• 4 ft for the main walk from the door, so two people can walk side by side.
• 5 ft feels generous and lets wheelbarrows and strollers pass.
• About 3 ft of clear walkway past furniture, so nobody squeezes behind a chair.
• Gates: 4 ft is comfortable for wheelbarrows and mowers; add a wide double gate if a riding mower or small machine will ever need in.

Keep a walk’s running slope at 5% (1 in 20) or less and its cross-slope near 2%. Those numbers line up with the ADA walking-surface standards, which don’t govern private yards but make a good yardstick: 36 in. minimum clear width, 60 in. for two wheelchairs to pass, and anything steeper than 1:20 treated as a ramp. Stepping stones read as a path when their centers sit about 24 in. apart.

Step 5: Size each zone before you draw its shape

Size comes from furniture plus clearance, not from what looks right on paper. A dining table needs about 36 in. behind every chair; our patio size guide breaks it down piece by piece. Settle sizes before shapes; our paver patio ideas pick up from there.

Zone	Plan on	Notes
Dining for 4 (48 in. round table)	10 × 10 ft; 12 × 12 ft comfortable	Next to the grill, near the kitchen
Dining for 6 (72 in. table)	10 × 12 ft; 12 × 14 ft comfortable	Add 2 ft of length per extra pair of seats
Lounge set (sofa, 2 chairs, table)	10 × 12 ft; 12 × 14 ft comfortable	Shade matters most here
Fire pit with 4 to 6 chairs	14 ft circle; 16 to 18 ft comfortable	Fire-code distances apply
Grill station	About 6 × 8 ft	Out of the main walkway
Hot tub	Tub plus 3 ft on access sides (a 7 × 7 ft tub needs about 10 × 10 ft)	Base, power and privacy below
Swing set, 8 ft top bar	About 24 × 32 ft clear	16 ft clear in front of and behind the swings
Two 4 × 8 ft raised beds	About 12 × 15 ft with paths	6 to 8 hours of sun
8 × 10 ft shed	About 12 × 14 ft	4 ft clear at the doors

Play sets surprise people. The CPSC’s Outdoor Home Playground Safety Handbook calls for cushioned surfacing at least 6 ft beyond the equipment, clearance in front of and behind swings equal to twice the top bar’s height, and the set at least 6 ft from the house, fences, sheds and trees.

Building a grill island instead of a grill cart? Our outdoor kitchen dimensions and layout guide covers counter and bar heights, aisle widths and how much counter each size of kitchen needs.

Step 6: Settle levels, water and edges

Grades decide whether the layout works in a storm. Code (IRC R401.3) wants the ground to fall at least 6 in. within the first 10 ft from the house. Patios pitch about ¼ in. per ft (2%) away from the house, and we set them one step, 6 to 7 in., below the door sill.

On a sloping lot, decide which zones sit on which level before drawing shapes, and connect levels with steps that have equal 5 to 7 in. risers and 12 to 16 in. treads; our sloped backyard ideas sort the options by steepness. Finish each zone with a real edge (restraint on open paver edges, a mow strip where lawn meets a bed) and lay sleeves under paving for future wiring or irrigation.

Water is the step most layouts skip. Our drainage guide covers yard water and French drains before anything gets built.

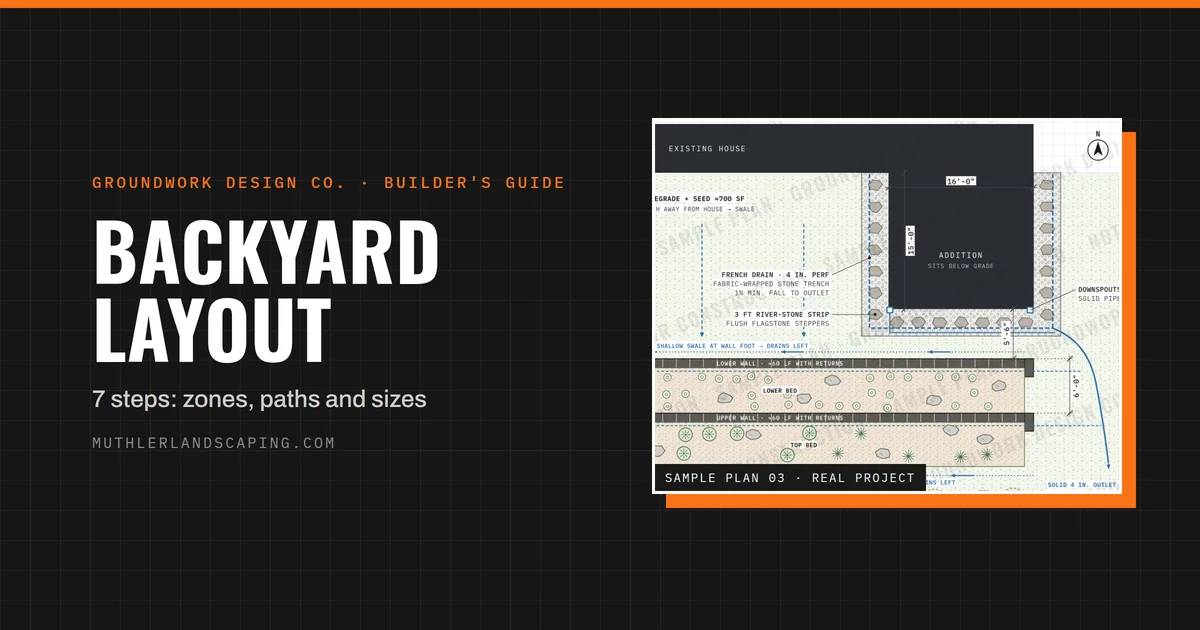

Sample plan 03 shows the order. An addition sat lower than the yard around it, so the plan drains it first: perforated pipe in a fabric-wrapped stone trench on three sides, a solid outlet about 40 ft down the side slope to daylight, downspouts in their own solid pipe, and a dry well as the fallback if the outlet can’t reach daylight at 1% fall. Only then does it turn the slope into two 2 ft terraces, with the upper wall 6 ft back (at least twice the lower wall’s height) so the tiers act independently.

Circulation and planting come last: about 23 flagstone steppers, 12 to 14 boulders reused from the site, a relocated specimen tree and about 70 plants. The excess soil stays on site instead of being hauled off.

Step 7: Phase it and price it by zone

Build in the order the ground needs, not the order that’s most fun:

1. Grading, drainage and anything buried: pipe, conduit, sleeves.
2. Walls and steps that set the levels.
3. Patios and main walks.
4. Structures: pergola, outdoor kitchen, hot tub pad.
5. Planting, then lighting and furniture.

One exception: plant trees in the first phase grading allows, since they take the longest to fill in. Budget by zone: gravel and mulch areas are $, paver patios and walks $$, walls, kitchens and structures $$$. Wall height, base depth, access and cuts often move the price as much as the paver you pick.

Once the zones are set, the walls, steps and patios still need real details before anyone can price them. Our builder’s guide to hardscape design walks through what a buildable plan for that work shows.

Our guide to building a backyard in phases shows how to split a plan without tearing out finished work. A full-yard plan from our online backyard design service puts the whole yard on one scaled plan, with a dimensioned hardscape sheet and a grading and drainage concept.

If you’re weighing an online service to draw the layout, our Yardzen review lays out its current package prices, how the process works and what any remote plan still needs before a contractor can price it.

Comparing more than one service? Our roundup of the best online landscape design services lines up Yardzen, Bacqyard, ShrubHub, Bower & Branch, Belgard and Groundwork on price, what you get and whether a contractor can build from the plan.

Backyard layout ideas by lot shape

The same zones fit differently on different lots. Here’s where we’d start:

Lot shape	Layout strategy	Watch out for
Rectangle	Main patio off the door, a fire pit or garden in a far corner, one open lawn panel between, beds on the edges	Lining everything up on the center line; a diagonal route feels bigger
Long and narrow	Two or three rooms in a row, split by planting or an arbor, with the busiest zone nearest the house	One straight center path that turns the yard into a bowling alley
Wide and shallow	Zones side by side along the house, each off its own door, tied together by one walk	A back fence close to the patio; screen it with layered planting
L-shaped or wraparound	A patio at the corner as the hinge, one use per arm	Losing sight of the far arm from the house
Corner lot	Private zones on the interior side, screening along the street	Many towns treat both street sides as front yards and cap fence and hedge height near the corner
Sloped	Patio on the flattest ground near the house, terraces or one wall for level panels, steps with landings	Drainage has to come before any wall or patio
Small (say, 20 × 30 ft)	One multi-use patio, built-in seat walls, one path, planting on the edges and up walls	Chopping it into tiny zones that each fit nothing
Large (half acre or more)	A hub near the house, then destinations along a looping path, with lawn or meadow between	Mowing and upkeep time; build it in phases

If your lot is sloped and the layout needs a wall to make level space, our retaining wall options compared by height, cost and lifespan help you pick the right one.

Backyard layout with a hot tub or pool

Hot tub

Put the tub close to a door; a short walk matters in January. Keep it out from under the roof edge, where snow slides off and gutters drip, and away from trees that drop leaves and sap. Plan a 3 ft clear path to the steps and to the equipment side for service.

A filled tub with people in it weighs several thousand pounds, so it needs a slab, a base built for it or a deck framed for the load (see our freestanding deck plans guide), per the tub maker’s spec. Run conduit before the patio goes in, let a licensed electrician set the circuit and disconnect, and screen the view from neighbors’ second-floor windows.

Pool

Place the pool where you can see it from the house, in afternoon sun and away from trees. Your local code sets the barrier rules; the CPSC’s pool barrier guidelines call for a barrier at least 48 in. high, with gates that open away from the pool and close and latch on their own. Draw that fence line early, because it divides the yard.

Leave at least 4 ft of deck around the water and 8 to 10 ft where lounge chairs go (a chaise is about 6½ ft long). Keep the pump and filter away from bedroom windows, check setbacks and easements, and bring in an engineer if the pool sits near a retaining wall or on a slope.

Common layout mistakes

• Designing from the back fence forward. Start at the door, where most of the use happens.
• Sizing the patio by eye. A 10 × 10 ft patio fits a table for four and nothing else.
• Running paths through seating. Route traffic around the edges.
• Ignoring where water goes. A patio in the yard’s low spot becomes a pond.
• Blocking the only access. A wall or shed across the one machine route makes every later project cost more.
• Building out of order. Drainage added after the patio means tearing into the patio.

Common questions about planning a backyard

How do I design my backyard layout?

List how you’ll use the yard, then map sun, water, utilities and setbacks on a scaled base map. Group uses into zones, connect them with 3 to 4 ft paths and size each zone to its furniture. Work out grades and drainage before choosing materials.

How wide should a backyard path be?

Make the main walk from the door 4 ft wide so two people can walk side by side, and secondary paths at least 3 ft. Five feet feels generous and handles wheelbarrows and strollers. Keep the running slope at 5% or less.

Where should a hot tub go in a backyard?

Close to a door, out from under the roof edge and trees, with a 3 ft clear path to the steps and the service side. It needs a base built for its filled weight, power run by a licensed electrician, and screening from neighbors’ upstairs windows.

How much space do you need for a fire pit area?

Plan a circle about 14 ft across for a fire pit with four to six chairs, or 16 to 18 ft to walk behind them comfortably. Check your local fire code for distance from the house, trees and fences; the International Fire Code keeps wood-burning recreational fires 25 ft from structures and combustible material.

What is the best layout for a small backyard?

One multi-use patio off the back door, built-in seat walls instead of extra chairs, a single path, and planting on the edges and up fences or walls. Splitting a small yard into many tiny zones usually leaves each one too small to use.

How much space do you need around a pool?

Leave at least 4 ft of deck around the water and 8 to 10 ft where lounge chairs go. Plan the barrier early too: CPSC guidelines call for a barrier at least 48 in. high, with gates that open away from the pool and close and latch on their own.

Where should a patio go in a backyard?

Off the door you use most, on the flattest ground near the house, so food and people don’t travel far. Set it one step, 6 to 7 in., below the door sill and pitch it about ¼ in. per foot away from the house; the IRC (R401.3) wants the ground to fall at least 6 in. in the first 10 ft.

What should you do first when planning a backyard?

Map the site and solve the water before you build anything. Call 811 a few business days before digging, then do grading, drainage and anything buried, like pipe, conduit and sleeves, before walls, patios and planting. Drainage added after the patio means tearing into the patio.

How far should a swing set be from a house or fence?

At least 6 ft, per the CPSC’s Outdoor Home Playground Safety Handbook, which also calls for cushioned surfacing at least 6 ft beyond the equipment and clear space in front of and behind swings equal to twice the top bar’s height. A set with an 8 ft top bar needs about 24 × 32 ft clear.

Where should a shed go in a backyard?

Out of the main view but on a hard path to the driveway, since bins and mowers travel every week. Check setbacks, easements and HOA rules first, and leave about 4 ft clear at the doors; an 8 × 10 ft shed takes about 12 × 14 ft.

Sources: U.S. Access Board, ADA Standards 403 Walking Surfaces; CPSC, Outdoor Home Playground Safety Handbook; CPSC, Safety Barrier Guidelines for Residential Pools; 811, Before You Dig
